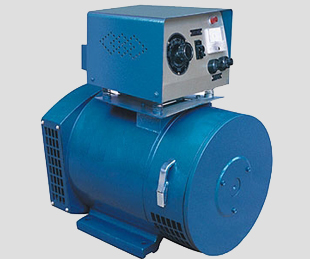

SDC Generating & Welding Dual-use Three-phase Alternator
SDC series generating and welding dual-use set is driven by an internal combustion engine. It can be used as mobile or stable power supplying unit in towns,
countryside, ships, workshops for lighting or welding purposes.
This series alternator can serve for lighting and welding respectively, further more,
they can serve for welding and illumination simultaneously.
OPERATING CONDITIONS
Ambient temperature: -15OC≤θ≤40OC
Altitude: not exceed 1000m
Rated voltage: ±5%
|
型 号 |
Three-Phase 400V 50Hz/1500r/min COS¢ =0.8 |
|
Rated Output |
Rated Voltage |
Rated Current |
Welding Voltage Under Load |
Welding Current |
Continuous Rate Under Load |
Current Adjustment Range For Welding (A) |
|
（V） |
(A) |
(V) |
(A) |
(%) |
|
kW |
KVA |
|
|
|
|
|
|
SDC-5 |
5 |
5 |
400 |
9 |
<80 |
140 |
40 |
60-160 |
|
SDC-7.5 |
7.5 |
7.5 |
400 |
13.5 |
<80 |
180 |
40 |
70-200 |
|
SDC-10 |
10 |
10 |
400 |
18.1 |
<80 |
225 |
40 |
80-280 |
|
SDC-12 |
12 |
12 |
400 |
21.7 |
<80 |
280 |
40 |
100-300 |

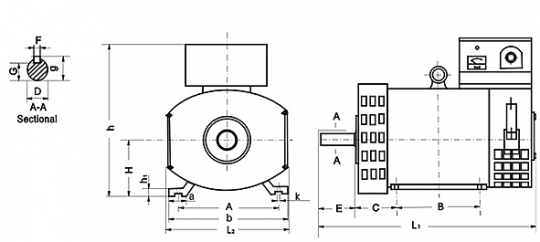

Installation size and overall dimension
|
Model |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
Weight (kg) |
|
KW |
A |
B |
C |
D |
E |
F |
G |
H |
K |
a |
b |
h1 |
h |
L1 |
L2 |
g |
|
SDC-5 |
5 |
254 |
254 |
108 |
Ø38 |
80 |
10 |
33 |
160 |
15 |
50 |
310 |
25 |
440 |
580 |
325 |
40.8 |
120 |
|
SDC-7.5 |
7.5 |
254 |
254 |
108 |
Ø38 |
80 |
12 |
33 |
160 |
16 |
50 |
310 |
25 |
440 |
580 |
325 |
40.8 |
130 |
|
SDC-10 |
10 |
279 |
203 |
121 |
Ø42 |
110 |
12 |
37 |
180 |
15 |
60 |
339 |
25 |
480 |
610 |
365 |
44.8 |
140 |
|
SDC-12 |
12 |
279 |
203 |
121 |
Ø42 |
110 |
12 |
37 |
180 |
15 |
60 |
339 |
25 |
480 |
610 |
365 |
44.8 |
155 |
