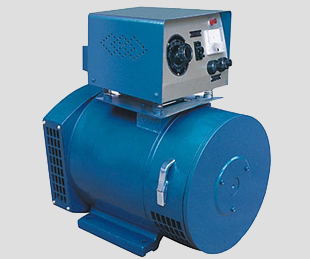

SD Generating & Welding Dual-use single-phase Alternator

SD series generating and welding dual-use set is driven by an internal combustion engine. It can be used as mobile or stable power supplying unit in towns,

countryside, ships, workshops for lighting or welding purposes.This series alternator can serve for lighting and welding respectively, further more,they can serve for welding and illumination simultaneously.

OPERATING CONDITIONS

Ambient temperature: -15OC≤θ≤40OC

Altitude: not exceed 1000m

Rated voltage: ±5%

Model	Single-Phase 230V 50Hz/1500r/min COS¢ =1.0
	Rated Output		Rated Voltage （V）	Rated Current(A)	Welding Voltage Under Load (V)	Welding Current (A)	Continuous Rate Under Load (%)	Current Adjustment Range For Welding (A)
	KW	KVA	Rated Voltage （V）	Rated Current(A)	Welding Voltage Under Load (V)	Welding Current (A)	Continuous Rate Under Load (%)	Current Adjustment Range For Welding (A)
SD-5	5	5	230	21.7	<80	160	40	70-200
SD-7.5	7.5	7.5	230	32.6	<80	200	40	80-240
SD-10	10	10	230	43.5	<80	230	40	100-300
SD-12	12	12	230	52.2	<80	300	40	140-320

Installation size and overall dimension

Model	Mounting Dimensions (mm)										Overall Dimensions (mm)							Weight (kg)
Model	KW	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g	Weight (kg)
SD-5	5	254	254	108	Ø38	80	10	33	160	15	50	310	25	440	580	325	40.8	120
SD-7.5	7.5	254	254	108	Ø38	80	12	33	160	16	50	310	25	440	580	325	40.8	130
SD-10	10	279	203	121	Ø42	110	12	37	180	15	60	339	25	480	610	365	44.8	140
SD-12	12	279	203	121	Ø42	110	12	37	180	15	60	339	25	480	610	365	44.8	155
SD-12	12	279	203	121	Ø42	110	12	37	180	15	60	339	25	480	610	365	44.8	155
