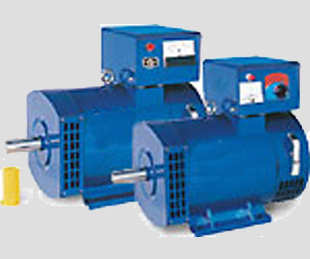

ST series single-phase generators are mainly designed to serve as power generating unit for lighting purpose in ships, towns or villages and house-hold electric appliances.
The construction of the generators is drip-proof type, IP21, salient-pole rotating field self excitation and constant voltage type. The generator interior is made of high quality magnetic and electrical materials. Insulation for stator and rotor is class B or F.
The generators are elegant in appearance, tight in construction and easy maintenance. IEC standard are adopted on dimension, Which are suitable for using in Australia, Europe, America and other countries with the end covers to be model B.
The generators are made as per standard JB/T3320.2-2000. And in conformity to IEC34-1

1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.

Model	Output	Current(A)		Voltage(V)		Power factor	Freq (HZ)	Pole	Speed
	(kw)	series	parallel	series	parallel	(cosφ)		number	(r.p.m)
		connection	connection	connection	connection	(cosφ)		number	(r.p.m)
ST-1	1	4.35	8.7	230	115	1	50/60	4	1500/1800
ST-2	2	8.7	17.4					4	1500/1800
ST-3	3	13	26					4	1500/1800
ST-5	5	21.8	43.5					4	1500/1800
ST-7.5	7.5	32.6	65.2					4	1500/1800
ST-10	10	43.5	87					4	1500/1800
ST-12	12	52.2	104					4	1500/1800
ST-15	15	65.3	130					4	1500/1800
ST-20	20	87	174					4	1500/1800
ST-24	24	104	208					4	1500/1800

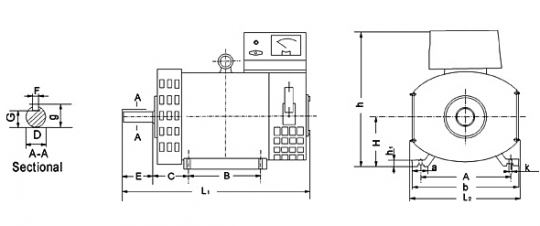

Installation size and overall dimension

Model	Output(kw)	Mounting Dimensions (mm)									Weight(kg)
Model	Output(kw)	A	B	C	D	E	F	G	H	I	Weight(kg)
ST-1	2	216	178	89	φ32	80	10	27	132	12	65
ST-2	2	216	178	89	φ32	80	10	27	132	12	65
ST-3	3	216	178	89	φ32	80	10	27	132	12	70
ST-5	5	254	254	108	φ38	80	10	33	160	15	120
ST-7.5	7.5	254	254	108	φ38	80	10	33	160	15	130
ST-10	10	279	203	121	φ42	110	12	37	180	15	140
ST-12	12	279	203	121	φ42	110	12	37	180	15	155
ST-15	15	318	228	133	φ48	110	14	42.5	200	19	192
ST-20	20	318	228	133	φ48	110	14	42.5	200	19	202
ST-24	24	318	228	133	φ48	110	14	42.5	200	19	230
