    MC
    作者：admin    发布于：2015-11-05 08:51:47

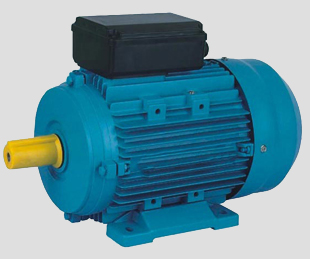

          MC Series Aluminium housing single-phase capacitor start synchronous motors,with latest design in entirely, are made of quality materials and meet the relative rules of IEC standard. MC motors have good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, light weight and simple construction.
    This series motors can be used on air compressor, pumps, refrigeration, medical apparatus instruments and many other machines that need full-load start.

    Operating Conditions:
    Ambient temperature: -15℃≤θ≤40℃
    Above sea level: not exceed 1000m
    Rated voltage: ±5%


    Technical data
    Type
    Output
    Current
    (A)
    Power
    factor
    Eff
    (%)
    Speed
    (r/min)
    Tstart/Tn
    Ist/In
    Tmax/Tn
    kW HP
    MC711-2
    0.18
    0.24
    1.89
    0.72
    60
    2750
    3
    6.5
    1.8
    MC712-2
    0.25
    0.33
    2.4
    0.74
    64
    2770
    3
    6.5
    1.8
    MC801-2
    0.37
    0.5
    3.36
    0.77
    65
    2800
    2.8
    6.5
    1.8
    MC802-2
    0.55
    0.75
    4.65
    0.79
    68
    2810
    2.8
    6.5
    1.8
    MC90S-2
    0.75
    1
    6.09
    0.8
    70
    2820
    2.5
    6.5
    1.8
    MC90L-2
    1.1
    1.5
    8.68
    0.8
    72
    2820
    2.5
    6.5
    1.8
    MC100L1-2
    1.5
    2
    11.4
    0.81
    74
    2830
    2.5
    7
    1.8
    MC100L2-2
    2.2
    3
    16.5
    0.81
    75
    2830
    2.2
    7
    1.8
    MC112M-2
    3
    4
    21.9
    0.82
    76
    2840
    2.2
    7
    1.8
    MC711-4
    0.12
    0.16
    1.88
    0.58
    50
    1350
    3
    6
    1.8
    MC712-4
    0.18
    0.24
    2.49
    0.62
    53
    1370
    3
    6
    1.8
    MC801-4
    0.25
    0.33
    3.11
    0.63
    58
    1400
    2.8
    6
    1.8
    MC802-4
    0.37
    0.5
    4.24
    0.64
    62
    1410
    2.8
    6
    1.8
    MC90S-4
    0.55
    0.75
    5.49
    0.69
    66
    1420
    2.5
    6
    1.8
    MC90L-4
    0.75
    1
    6.87
    0.73
    68
    1420
    2.5
    6
    1.8
    MC100L1-4
    1.1
    1.5
    9.52
    0.74
    71
    1430
    2.5
    6.5
    1.8
    MC100L2-4
    1.5
    2
    12.5
    0.75
    73
    1430
    2.5
    6.5
    1.8
    MC112M-4
    2.2
    3
    17.8
    0.76
    74
    1440
    2.2
    6.5
    1.8


    Overall & Installation Dimensions
    Frame
    No
    Installation Size
    Installation Size For B14
    Installation Size For B5
    Overall Dimension
    A
    B
    C
    D
    E
    F
    G
    H
    K
    M
    N
    P
    S
    T
    M
    N
    P
    S
    T
    AB
    AC
    AD
    HD
    L
    56
    90
    71
    36
    9
    20
    3
    7.2
    56
    6
    100
    80
    120
    8.5
    3
    65
    50
    80
    M5
    2
    112
    108
    93
    149
    192
    63
    100
    80
    40
    11
    23
    4
    8.5
    63
    7
    115
    95
    140
    10
    3
    75
    60
    90
    M5
    2.5
    120
    120
    97
    160
    211
    71
    112
    90
    45
    14
    30
    5
    11
    71
    7
    130
    110
    160
    10
    3.5
    85
    70
    105
    M6
    2.5
    135
    135
    107
    178
    246
    80
    125
    100
    50
    19
    40
    6
    16
    80
    10
    165
    130
    200
    12
    3.5
    100
    80
    120
    M6
    3
    155
    155
    141
    221
    284
    90S
    140
    100
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    12
    3.5
    115
    95
    140
    M8
    3
    175
    175
    160
    250
    314
    90L
    140
    125
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    12
    3.5
    115
    95
    140
    M8
    3
    175
    175
    160
    250
    339
    100L
    160
    140
    63
    28
    60
    8
    24
    100
    12
    215
    180
    250
    15
    4
    130
    110
    160
    M8
    3.5
    200
    195
    160
    260
    412
    112M
    190
    140
    70
    28
    60
    8
    24
    112
    12
    215
    180
    250
    15
    4
    130
    110
    160
    M8
    3.5
    226
    220
    166
    278
    421
