    首页>>Product>>AC ELECTRIC MOTOR>>Aluminum house
    MS
    作者：admin    发布于：2015-11-05 08:52:58

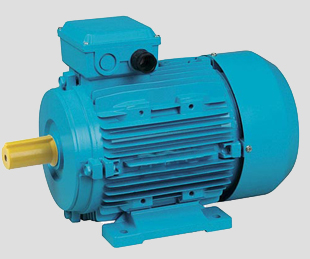

    Three phase, MS series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
    - Superior finish - Externally Ventilated - Light weight construction
    - Top mounted terminal box - IP55 Protection
    - Interchangeable foot mounting and flange mounting - Motor frame Size form 56-160 - 2,4 and 6 pole

    Operating Conditions:
    Ambient temperature: -15℃≤θ≤40℃
    Above sea level: not exceed 1000m
    Rated voltage: ±5%

    Technical data
    TYPE
    OUTPUT
    Voltage (V)
    Current(A)
    Speed (r/min)
    Eff.(%)
    Power factor
    Tst/Tn
    Tmax/Tn
    Kw
    HP
    50%
    75%
    100%
    MS8012
    0.75
    1
    230/400
    3.0/1.73
    2800
    76.5
    77.3
    77.4
    0.813
    2.2
    2.3
    MS8022
    1.1
    1.5
    4.2/2.43
    2800
    79.0
    80.0
    79.6
    0.825
    2.2
    2.3
    MS90S-2
    1.5
    2
    5.53/3.19
    2820
    80.2
    81.5
    81.3
    0.837
    2.2
    2.3
    MS90L-2
    2.2
    3
    7.93/4.58
    2820
    82.2
    83.5
    83.2
    0.837
    2.2
    2.3
    MS100L-2
    3
    4
    10.5/6.06
    2830
    84.0
    85.1
    84.6
    0.848
    2.2
    2.3
    MS112M-2
    4
    5.5
    400/690
    7.97/4.6
    2850
    85.4
    86.8
    85.8
    0.848
    2.2
    2.3
    MS132S1-2
    5.5
    7.5
    10.65/6.15
    2870
    86.7
    87.3
    87.0
    0.860
    2
    2.3
    MS132S2-2
    7.5
    10
    14.35/8.28
    2870
    87.6
    88.3
    88.1
    0.860
    2
    2.3
    MS160M1-2
    11
    15
    20.74/11.97
    2900
    89.0
    89.8
    89.4
    0.860
    2
    2.3
    MS160M2-2
    15
    20
    27.99/16.16
    2900
    90.0
    90.5
    90.3
    0.860
    2
    2.3
    MS160L-2
    18.5
    25
    33.83/19.53
    2900
    90.3
    91.0
    90.9
    0.872
    2
    2.2
    MS8024
    0.75
    1
    230/400
    3.28/1.9
    1380
    77.3
    79.8
    79.6
    0.720
    2.3
    2.3
    MS90S-4
    1.1
    1.5
    4.57/2.64
    1400
    79.9
    81.7
    81.4
    0.743
    2.3
    2.3
    MS90L-4
    1.5
    2
    6.02/3.48
    1400
    82.1
    83.5
    82.8
    0.755
    2.3
    2.3
    MS100L1-4
    2.2
    3
    8.42/4.86
    1420
    82.6
    84.5
    84.3
    0.778
    2.2
    2.3
    MS100L2-4
    3
    4
    11.32/6.54
    1420
    84.2
    85.7
    85.5
    0.778
    2.2
    2.3
    MS112M-4
    4
    5.5
    400/690
    8.47/4.89
    1430
    85.8
    87.0
    86.6
    0.790
    2.2
    2.3
    MS132S-4
    5.5
    7.5
    11.18/6.45
    1450
    87.4
    88.3
    87.7
    0.813
    2.2
    2.3
    MS132M-4
    7.5
    10
    14.85/8.58
    1450
    88.2
    89.0
    88.7
    0.825
    2.2
    2.3
    MS160M-4
    11
    15
    21.84/12.61
    1460
    89.1
    90.0
    89.8
    0.813
    2.2
    2.3
    MS160L-4
    15
    20
    29.08/16.79
    1460
    90.2
    91.1
    90.6
    0.825
    2.2
    2.3
    MS90S-6
    0.75
    1
    230/400
    3.82/2.2
    910
    73.4
    76.3
    75.9
    0.650
    2
    2.2
    MS90L-6
    1.1
    1.5
    5.25/3.03
    910
    77.0
    78.8
    78.1
    0.673
    2
    2.2
    MS100L-6
    1.5
    2
    6.77/3.91
    940
    79.6
    80.8
    79.8
    0.697
    2
    2.2
    MS112M-6
    2.2
    3
    9.69/5.59
    940
    80.4
    81.6
    81.8
    0.697
    2
    2.2
    MS132S-6
    3
    4
    12.56/7.25
    960
    81.0
    83.4
    83.3
    0.720
    2
    2.2
    MS132M1-6
    4
    5.5
    400/690
    9.36/5.4
    960
    82.7
    84.5
    84.6
    0.732
    2
    2.2
    MS132M2-6
    5.5
    7.5
    12.47/7.2
    960
    84.8
    86.2
    86.0
    0.743
    2
    2.2
    MS160M-6
    7.5
    10
    16.78/9.69
    970
    86.4
    87.5
    87.2
    0.743
    2
    2
    MS160L-6
    11
    15
    24.19/13.97
    970
    88.2
    89.2
    88.7
    0.743
    2
    2

    Overall & Installation Dimensions
    Frame
    No    		 Installation Size Installation Size For B5 Installation Size For B14 Overall Dimension
    A B C D E F G H K O M N P S T M N P S T AB AC AD HD L
    80 125 100 50 19 40 6 16 80 10 1-M20X1.5 100 80 120 M6 3 165 130 200 12 3.5 155 160 113 193 284
    90S 140 100 56 24 50 8 20 90 10 1-M20X1.5 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 316
    90L 140 125 56 24 50 8 20 90 10 1-M20X1.5 115 95 140 M8 3 165 130 200 12 3.5 175 175 123 213 341
    100L 160 140 63 28 60 8 24 100 12 1-M20X1.5 130 110 160 M8 3.5 215 180 250 15 4 200 195 157 257 377
    112M 190 140 70 28 60 8 24 112 12 2-M25X1.5 130 110 160 M8 3.5 215 180 250 15 4 226 220 163 275 392
    132S 216 140 89 38 80 10 33 132 12 2-M25X1.5 165 130 200 M10 3.5 265 230 300 15 4 265 265 183 315 463
    132M 216 178 89 38 80 10 33 132 12 2-M25X1.5 165 130 200 M10 3.5 265 230 300 15 4 265 265 183 315 501
    160M 254 210 108 42 110 12 37 160 15 2-M40X1.5 215 180 250 M12 4 300 250 350 19 5 310 320 223 383 606
    160L 254 254 108 42 110 12 37 160 15 2-M40X1.5 215 180 250 M12 4 300 250 350 19 5 310 320 223 383 650


    B5R 4 Holes at 45
    TYPE
    P
    N
    M
    S
    T
    80
    160
    110
    130
    10
    3.5
    90
    160
    110
    130
    10
    3.5
    100
    200
    130
    165
    12
    3.5
    112
    200
    130
    165
    12
    3.5
    132
    250
    180
    215
    15
    4.0
