AИP
作者：admin 发布于：2015-11-05 08:52:15

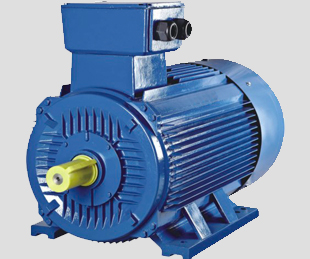

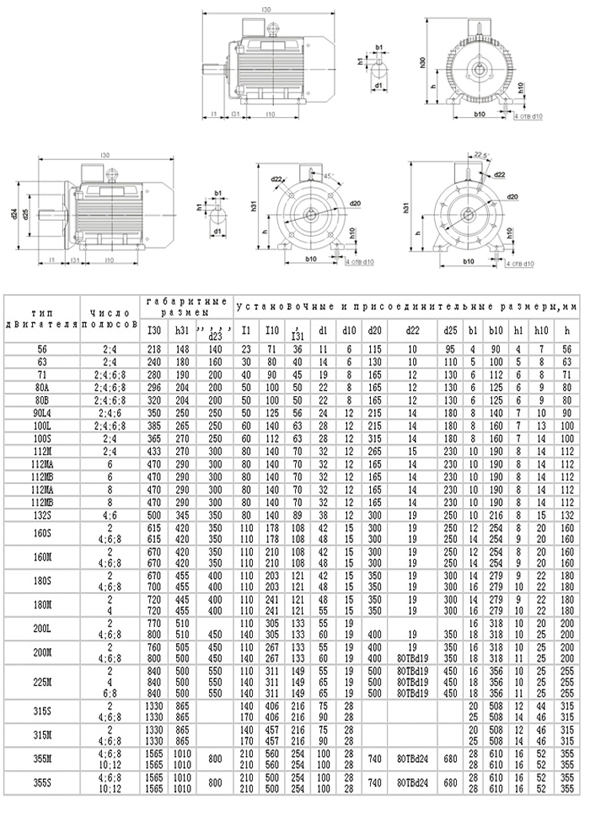

AИP series three-phase asynchronous motor is speciaIly designed for Russian market, whose terminal box Iocate on the top of motor. The motor has a very compact structure and attractive appearance, the sizes and mounting dimensions are all in conformity with GOST standard. The motor has some good feature, such as high efficiency, energy- saving. High starting torque and easy maintenance etc. There are three kinds of instaIlation construction for motor: B3 Frame with foot, end shieId without flange: B35 Frame with foot, end shield with flange: B5 Frame without foot, end shield with flange.
АИР series Three-phase induction motors,are conformity with gost R51689 standards,it'sadvantages with good performance ,nice appearance,light weight.
OPERATING CONDITIONS
*Ambient temperature :-15 ℃<θ<40 ℃
*Altitudine :not exceed 1000 m
*Rated voltage :220V - 720V
*Rated frequency :50Hz / 60Hz
*Protection class :IP54
*Insulation class :F
*Cooling method :ICO 141
*Duty :S1(continuous)
*Connection :Star -connection for up to 3KW ,delta - connection for 4KW and above.
