    ML
    作者：admin    发布于：2015-11-05 08:48:27

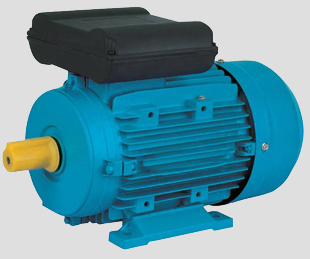

           ML Series Aluminium housing single-phase two value capacitor synchronous motors, which latest design in entirety, are made of quality materials and meet the relative rules of IEC standard. ML motors have good performance, safe and reliable operation, nice appearance, it can be maintained very conveniently while with low noise, little vibration, light weight and simple construction.
    This series motors can be used for air compressor, pumps, refrigeration, medical apparatus and instruments, and many other small size machines.

    Operating Conditions:
    Ambient temperature: -15℃≤θ≤40℃
    Above sea level: not exceed 1000m
    Rated voltage: ±5%


    Technical data
    Type
    Output
    		 Current
    (A)
    Power
    factor
    		 Eff
    (%)
    Speed
    (r/min)
    Tstart/Tn
    Ist/In
    Tmax/Tn
    kW HP
    ML711-2
    0.37
    0.5
    2.6
    0.95
    68
    2760
    2.2
    6.5
    1.7
    ML712-2
    0.55
    0.75
    3.71
    0.95
    71
    2760
    2.2
    6.5
    1.7
    ML801-2
    0.75
    1
    4.92
    0.95
    73
    2780
    2.2
    6.5
    1.7
    ML802-2
    1.1
    1.5
    7.02
    0.95
    75
    2780
    2.2
    6.5
    1.7
    ML90S-2
    1.5
    2
    9.32
    0.95
    77
    2800
    2.2
    6.5
    1.7
    ML90L-2
    2.2
    3
    13.5
    0.95
    78
    2800
    2.2
    6.5
    1.7
    ML100L-2
    3
    4
    18.2
    0.95
    79
    2820
    2
    7
    1.7
    ML112M-2
    3.7
    5
    22.1
    0.95
    80
    2820
    2
    7
    1.7
    ML711-4
    0.25
    0.33
    1.9
    0.95
    63
    1360
    2.2
    6.5
    1.7
    ML712-4
    0.37
    0.5
    2.64
    0.95
    67
    1360
    2.2
    6.5
    1.7
    ML801-4
    0.55
    0.75
    3.76
    0.95
    70
    1380
    2.2
    6.5
    1.7
    ML802-4
    0.75
    1
    4.98
    0.95
    72
    1380
    2.2
    6.5
    1.7
    ML90S-4
    1.1
    1.5
    7.11
    0.95
    74
    1400
    2.2
    6.5
    1.7
    ML90L-4
    1.5
    2
    9.44
    0.95
    76
    1400
    2.2
    6.5
    1.7
    ML100L1-4
    2.2
    3
    13.7
    0.95
    77
    1410
    2
    7
    1.7
    ML100L2-4
    3
    4
    18.4
    0.95
    78
    1420
    2
    7
    1.7
    ML112M-4
    3.7
    5
    22.4
    0.95
    79
    1420
    2
    7
    1.7


    Overall & Installation Dimensions
    Frame
    No
    Installation Size
    Installation Size For B5
    Installation Size For B14
    Overall Dimension
    A
    B
    C
    D
    E
    F
    G
    H
    K
    M
    N
    P
    S
    T
    M
    N
    P
    S
    T
    AB
    AC
    AD
    HD
    L
    71
    112
    90
    45
    14
    30
    5
    11
    71
    7
    130
    110
    160
    10
    3.5
    85
    70
    105
    M6
    2.5
    135
    140
    107
    178
    246
    80
    125
    100
    50
    19
    40
    6
    16
    80
    10
    165
    130
    200
    12
    3.5
    100
    80
    120
    M6
    3
    155
    160
    141
    221
    299
    90S
    140
    100
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    12
    3.5
    115
    95
    140
    M8
    3
    175
    175
    160
    250
    328
    90L
    140
    125
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    12
    3.5
    115
    95
    140
    M8
    3
    175
    175
    160
    250
    358
    100L
    160
    140
    63
    28
    60
    8
    24
    100
    12
    215
    180
    250
    15
    4
    130
    110
    160
    M8
    3.5
    200
    195
    160
    260
    412
    112M
    190
    140
    70
    28
    60
    8
    24
    112
    12
    215
    180
    250
    15
    4
    130
    110
    160
    M8
    3.5
    226
    220
    166
    278
    421
