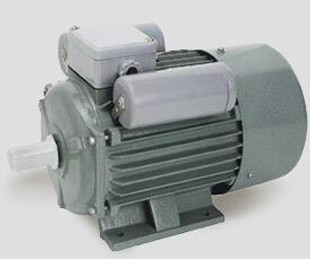

    YCL
    作者：admin    发布于：2015-11-02 09:53:50
    YCL series heavy-duty capacitor start and run, single phase induction motors are suitable for driving small-size turning machine, especially suitable for household and workshop where only need single-phase power be supplied. This series motors are designed with advanced technique and made of quality materials. It also have following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC.
    YCL series motors are similar to YC series in appearance. Comparing with the same output of YC series motors, YCL series temperature rise be reduced 8.74k on average, efficiency be increased 4.21%, power factor be increased 0.16.


    Operating Conditions:
    Ambient temperature: -15℃ ≤θ≤ 40℃
    Above sea level: not exceed 1000m
    Rated voltage:220V/50Hz

    Technical data
    Type
    Output
    Current
    (A)
    Power
    factor
    Eff
    (%)
    Speed
    (r/min)
    Tstart/Tn
    Ist/In
    Tmax/Tn
    kW HP
    YCL90S-2
    1.1
    1.5
    7.2
    0.95
    73.2
    2880
    2.8
    6
    1.8
    YCL90L-2
    1.5
    2
    8.9
    0.97
    76
    2900
    2.8
    7
    1.8
    YCL100L-2
    2.2
    3
    13.2
    0.96
    78.8
    2900
    3
    6.5
    1.8
    YCL90S-4
    0.75
    1
    5
    0.93
    73.3
    1450
    2.8
    6.5
    1.8
    YCL90L-4
    1.1
    1.5
    7.8
    0.9
    75
    1450
    2.5
    6
    1.8
    YCL100L-4
    1.5
    2
    9.3
    0.92
    79.4
    1450
    2.8
    7
    1.8
    YCL112M-4
    2.2
    3
    13.6
    0.9
    81.6
    1450
    2.3
    6.5
    1.8
    YCL132S1-4
    3
    4
    18.2
    0.9
    83.2
    1450
    2.1
    6.5
    1.8
    YCL132S2-4
    3.7
    5
    22
    0.9
    84.9
    1450
    2.1
    6.5
    1.8
    YCL132M1-4
    5.5
    7.5
    32.5
    0.9
    85
    1460
    2
    6.5
    1.8
    YCL132M2-4
    7.5
    10
    40
    0.9
    85.5
    1460
    2
    6.5
    1.8

    Overall & Installation Dimensions
    Frame
    size
    Mounting Dimension
    Overall Dimension
    A
    B
    C
    D
    E
    F
    G
    H
    K
    M
    N
    P
    R
    S
    T
    AB
    AC
    AD
    HD
    L
    71
    112
    90
    45
    14
    30
    5
    11
    71
    7
    130
    110
    160
    0
    10
    3.5
    145
    145
    140
    180
    255
    80
    125
    100
    50
    19
    40
    6
    16
    80
    10
    165
    130
    200
    0
    12
    3.5
    160
    165
    150
    200
    295
    90S
    140
    100
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    0
    12
    3.5
    180
    185
    160
    240
    370
    90L
    140
    125
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    0
    12
    3.5
    180
    185
    160
    240
    400
    100L
    160
    140
    63
    28
    60
    8
    24
    100
    12
    215
    180
    250
    0
    15
    4
    205
    220
    180
    260
    430
    112M
    190
    140
    70
    28
    60
    8
    24
    112
    12
    215
    180
    250
    0
    15
    4
    245
    250
    190
    300
    455
    132S
    216
    140
    89
    38
    80
    10
    33
    132
    12
    265
    230
    300
    0
    15
    4
    280
    290
    210
    350
    525
    132M
    216
    178
    89
    38
    80
    10
    33
    132
    12
    265
    230
    300
    0
    15
    4
    280
    290
    210
    350
    553
