    YC
    作者：admin    发布于：2015-11-02 09:54:01

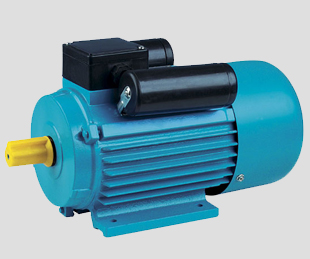

    YC series heavy-duty capacitor starting , single-phase motors are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.

    Operating Conditions:
    Ambient temperature: -15℃ ≤θ≤ 40℃
    Above sea level: not exceed 1000m
    Rated voltage:220V/50Hz

    Technical data
    Type
    Output
    Current
    (A)
    Power
    factor
    		 Eff
    (%)    		 Speed
    (r/min)
    Tstart/Tn
    Ist/In
    Tmax/Tn
    kW HP
    YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2
    YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2
    YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2
    YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2
    YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2
    YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2
    YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2
    YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2
    YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2
    YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2
    YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2
    YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2
    YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2
    YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2
    YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2
    YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2
    YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2
    YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2
    YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2
    YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2
    YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2

    Overall & Installation Dimensions
    Frame
    size
    Mounting Dimension
    Overall Dimension
    A
    B
    C
    D
    E
    F
    G
    H
    K
    M
    N
    P
    R
    S
    T
    AB
    AC
    AD
    HD
    L
    71
    112
    90
    45
    14
    30
    5
    11
    71
    7
    130
    110
    160
    0
    10
    3.5
    145
    145
    140
    180
    255
    80
    125
    100
    50
    19
    40
    6
    16
    80
    10
    165
    130
    200
    0
    12
    3.5
    160
    165
    150
    200
    295
    90S
    140
    100
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    0
    12
    3.5
    180
    185
    160
    240
    370
    90L
    140
    125
    56
    24
    50
    8
    20
    90
    10
    165
    130
    200
    0
    12
    3.5
    180
    185
    160
    240
    400
    100L
    160
    140
    63
    28
    60
    8
    24
    100
    12
    215
    180
    250
    0
    15
    4
    205
    220
    180
    260
    430
    112M
    190
    140
    70
    28
    60
    8
    24
    112
    12
    215
    180
    250
    0
    15
    4
    245
    250
    190
    300
    455
    132S
    216
    140
    89
    38
    80
    10
    33
    132
    12
    265
    230
    300
    0
    15
    4
    280
    290
    210
    350
    525
    132M
    216
    178
    89
    38
    80
    10
    33
    132
    12
    265
    230
    300
    0
    15
    4
    280
    290
    210
    350
    553
